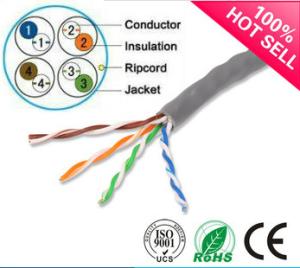

1000ft Cat5e Cable UTP Solid 0.51mm BC/CCA 24AWG Twisted Pair Wire

Name: 1000ft Cat5e Cable UTP Solid 051mm BCCCA 24AWG Twisted Pair Wire
Brand: WONTERM
Price: 1 USD

China 1000ft Cat5e Cable UTP Solid 0.51mm BC/CCA 24AWG Twisted Pair Wire wholesale

Brand Name : WONTERM

Model Number : WT5803

Certification : CE/FCC/UL/ROHS

Place of Origin : China

MOQ : 30pcs

Price : negotiation

Payment Terms : T/T or western Union

Supply Ability : 2500pcs per month

Delivery Time : 10 working days after received your payment

Packaging Details : First packed in box and then put two boxes in one Carton.

Color : As your request

Package : 305M/box(According requirements)

Length : 305m/roll

Nominal Outer Diameter : 5.0mm

Jacket : PVC( LSZH )

PVC : 65 degree PVC

Packaging : 2 boxes/carton

Contact Now

1000ft Cat5e Cable UTP Solid 0.51mm BC/CCA 24AWG Twisted Pair Wire

Specification:

Model	indoor cat5e cable
Conductor Size	24AWG
Conductor Size	0.48mm/0.49mm/0.5mm/0.51mm etc
Conductor Material	CCA/CCU/BC
Nuber Of Conductor	4P
Shield	UTP/FTP
Flammability Grade	CMP,CMX,CM,CMG,MPG,CMR,MPR
Insulation Material	PE,HDPE,LSZH PE
Insulation Thickness	0.91mm
Jacket Material	PVC, ROHS PVC, LSZH PVC
Outer Jacket Thickness	5.2mm
DC Resistance(Max.)	9.5Ω/100m
DC Resistance Imbalance	2.50%
Working Capacitance(Max.)	5.4nF/100m

Description:

1. Conductor: 24AWG/26AWG Copper, CCA, (8*7*0.12, 8*7*0.16mm etc)
2. Insulation: 0.92mm+/- 0.06 HD/PE
3. Pairs: 4 pairs
4. Jacket: PVC
5. Packing: 1m, 2m, 3m, 5m, 7m, 10m, 15m, 20m...100m, 1pcs/poly bag.
6. Any length is availabe
7. Temperature Range: -20 up to +75c
8. Conductor Resistance: Max. 9.38 ohm/100m
9. Resistance Unbalance: Max. 2%
10. Insulation Resistance: Max. 150 ohm/Km
11. Mutual Capacitance: Max. 5600pF/100m
12. Capacitance Unbalance: Max. 330pF/100m
13. Impedence: 100+/-15
14. Spark Test: 2000V
15. Velocity of propagation: 67%
Complies with Enhanced Cat. 5 Cabling Specification TIA/EIA-568B-2
OEM AVAILABLE

Applications:

1. Computer Network Cabling Project.
2. Broadband Network Communication.
3. Digital ISDN Network and ATM 155Mbps Network
4. Ethernet Network
5. Audio and Data Transmission

Competitive Advantage:

Our products adopt green technology design.
