Lan Cable Cat 7 Network Cables SSTP Long Network Cable 305M 100M
Specifications:
UL listed, RoHS compliance, ISO approval, CE approval
Cat7 SSTP Cable
Application:
100Base T, ATM,Ethernet,token Ring,Tp-pmd audio,Telephone And multimedia Networks.
Cable Data:
| Conductor | Solid bare copper | Rip cord | NO |
| AWG | 23 | Core color | |
| conductor Dia (mm) | 0.58 | Part 1: | Blue-white/blue |
| Insulation | PF | Part 2: | Orange-white/orange |
| Insulation Dia (±0.03mm) | 1.40 | Part 3: | Green-white/green |
| Twising Lay Length (mm) | 30 underneath | Part 4: | Brown-white/brown |
| Jacket | PVC/LSZH | | |
UL Listed,RoHS compliance,ISO approval,CE approval
ELECTRONIC CHARACTER
| Frequency MHZ | Frequency MHZ | NEXT pr/pr db | ACR db/100M | P,Sum NEXT db | EL-FEXT pr/pr db/100m | PSEL-FEXT DB/100M | RL db |
| 0.772 | 1.8 | 101.1. | 99.3 | 99.1 | 93.2 | 90.2 | 19.4 |
| 1.0 | 2.0 | 99.4 | 97.4 | 97.4 | 91.0 | 88.0 | 20.0 |
| 4.0 | 3.7 | 90.4 | 86.6 | 88.4 | 79.0 | 76.0 | 23.0 |
| 8.0 | 5.2 | 85.9 | 80.6 | 83.9 | 72.9 | 69.9 | 24.5 |
| 10.0 | 5.9 | 84.4 | 78.5 | 82.4 | 71.0 | 68.0 | 25.0 |
| 16.0 | 7.4 | 81.3 | 73.9 | 79.3 | 66.9 | 63.9 | 25.0 |
| 20.0 | 8.3 | 79.9 | 71.6 | 77.9 | 65.0 | 62.0 | 25.0 |
| 25.0 | 9.3 | 78.4 | 69.1 | 76.4 | 63.0 | 60.0 | 24.3 |
| 31.25 | 10.4 | 77.0 | 66.6 | 75.0 | 61.1 | 58.1 | 23.6 |
| 62.5 | 14.9 | 72.5 | 57.6 | 70.5 | 55.1 | 52.1 | 21.5 |
| 100 | 19.0 | 69.4 | 50.4 | 67.4 | 51.0 | 48.0 | 20.1 |
| 200 | 27.5 | 64.9 | 37.4 | 62.9 | 45.0 | 42.0 | 18.0 |
| 250 | 31.0 | 63.4 | 32.5 | 61.4 | 43.0 | 40.0 | 17.3 |
| 300 | 34.2 | 62.2 | 28.1 | 60.2 | 41.5 | 38.5 | 16.8 |
| 600 | 50.1 | 57.7 | 7.6 | 55.7 | 35.4 | 32.4 | 14.7 |
Packing & Shipping:
Delivery time:5-20days depends on your quantity
Packing: 305m/roll,1roll/ctn,customized packing is available.
Shipping: Strong cooperation with DHL,UPS,FedEx,TNT Express and Shipping company to ensure your product.
Competitive Advantage:
About us:

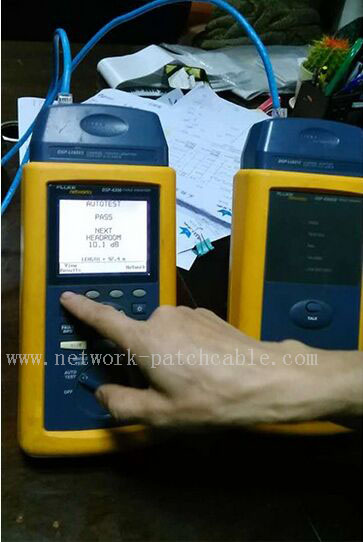

Pass Fluke:
