Blue 3ft 5ft 7ft Unshielded Cat5e Patch Cables Networking Cable With RJ45 Jack

Name: Blue 3ft 5ft 7ft Unshielded Cat5e Patch Cables Networking Cable With RJ45 Jack
Brand: WONTERM
Price: 1 USD

China Blue 3ft 5ft 7ft Unshielded Cat5e Patch Cables Networking Cable With RJ45 Jack wholesale

Brand Name : WONTERM

Model Number : WTP5001

Certification : CE/FCC/UL/ROHS

Place of Origin : China

MOQ : 1000pcs

Price : negotiation

Payment Terms : T/T or western Union

Supply Ability : 30000pcs per month

Delivery Time : 10 working days after received your payment

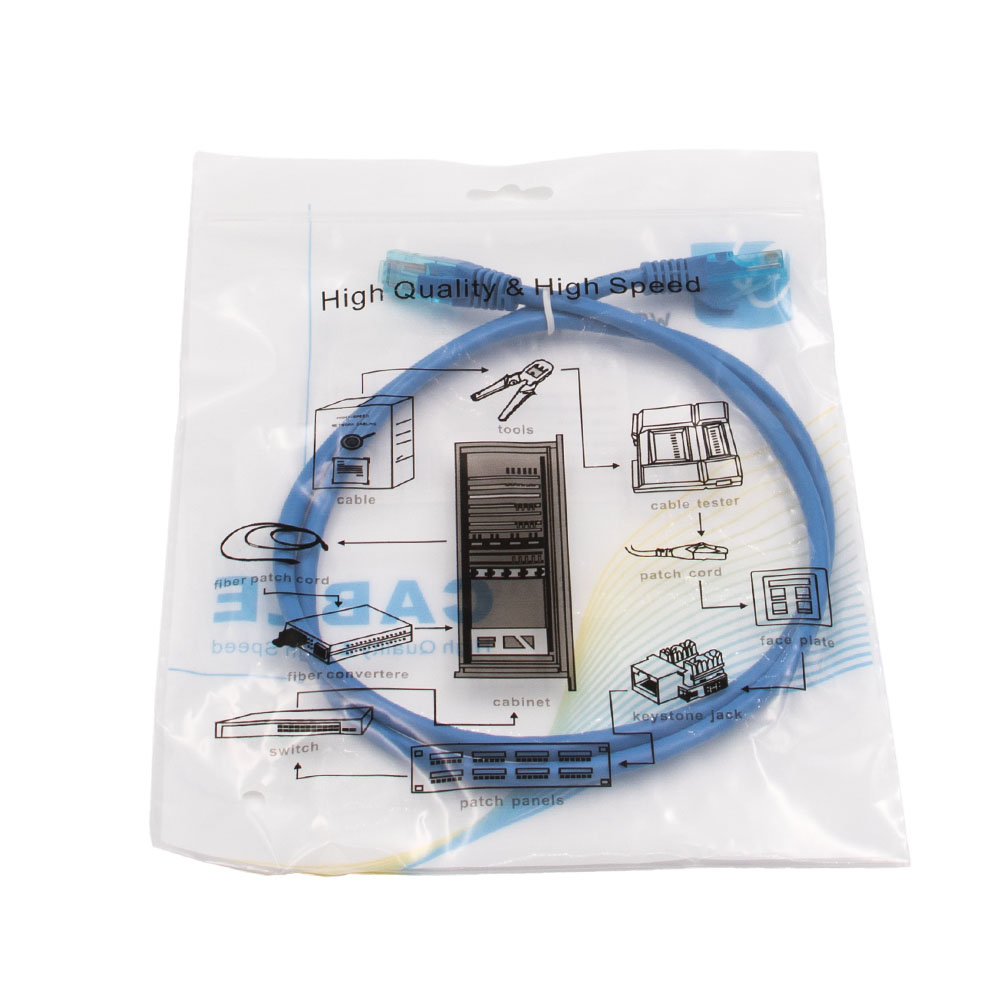

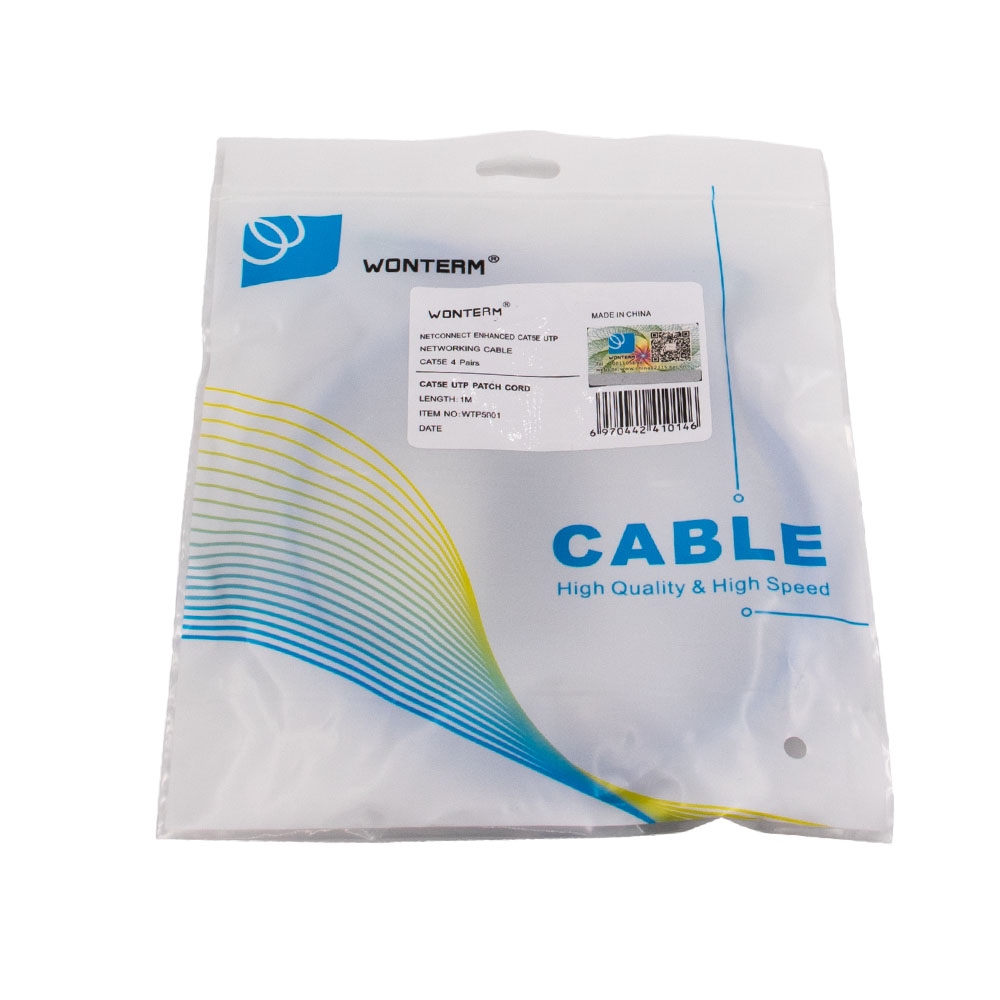

Packaging Details : 250m/box

Nominal Outer Diameter : 5.0mm

Length : 1m,2m,3m,5m,10m......

Jacket : PVC(LSZH)

Packaging : 250pcs/box

Carton CBM(mm) : 42*37*37

Operating Temp : -40°C ~+80°C

PVC : LSZH,ROHS,65° PVC

Contact Now

networking cable with RJ45 jack Unshielded cat5e 4Pair 8core blue 3ft 5ft 7ft

Specifications:

Inner Conductor	Number of Pairs	4
	Total Number of Conductors	8
	Conductor Material	BC-Solid Bare Copper
	Wire Gage	23AWG,24AWG,26AWG,28AWG
	Conductor Diam(ø)mm	0.50±0.03mm
	Elongation	≥15%
Insulation	Insulation Material	HDPE - Polyethylene
	Nom. Thickness	0.215mm
	Insulation Dia.	Φ0.95±0.05mm
	Elongation	300%
	Color Cord	Pair 1:White-Blue & Blue;
		Pair 2:White-Orange & Orange
		Pair 3:White-Green & Green;
		Pair 4:White-Brown & Brown

Description:

1. 100% Component Test (patch cord test)100% Visual inspection

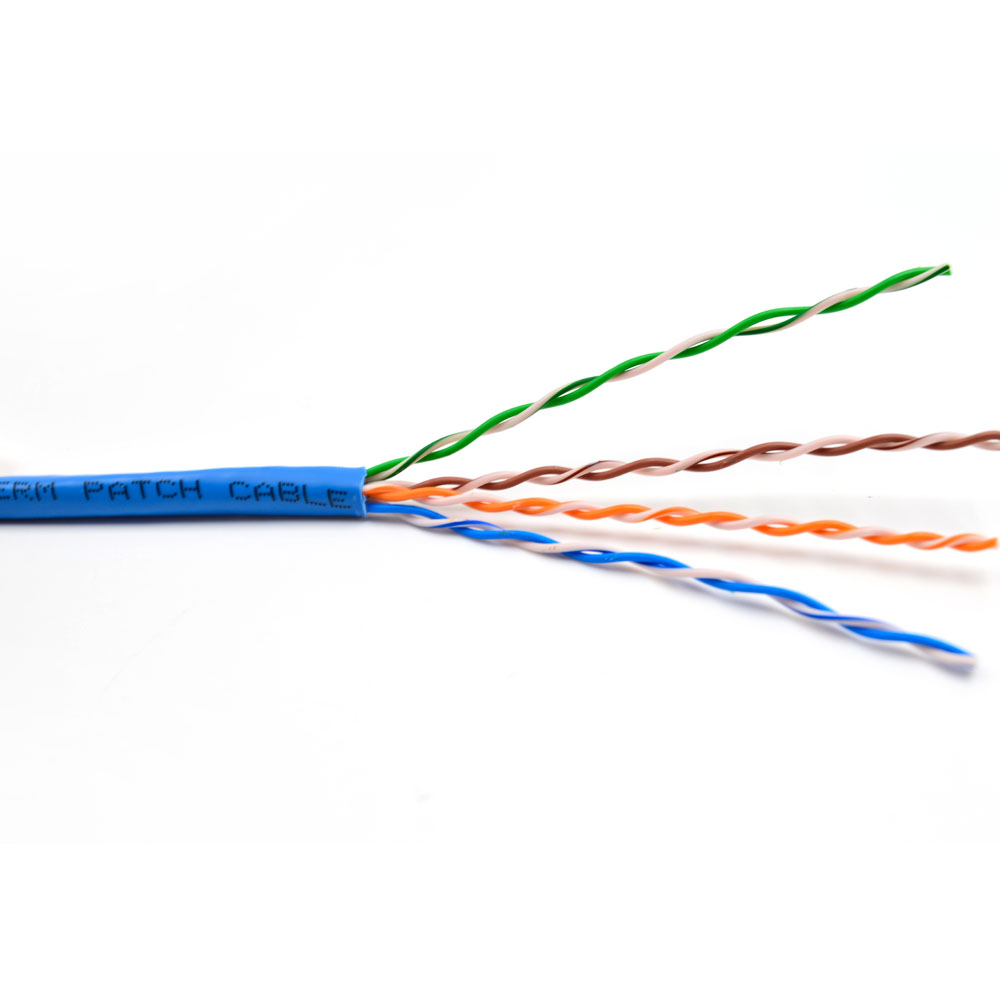

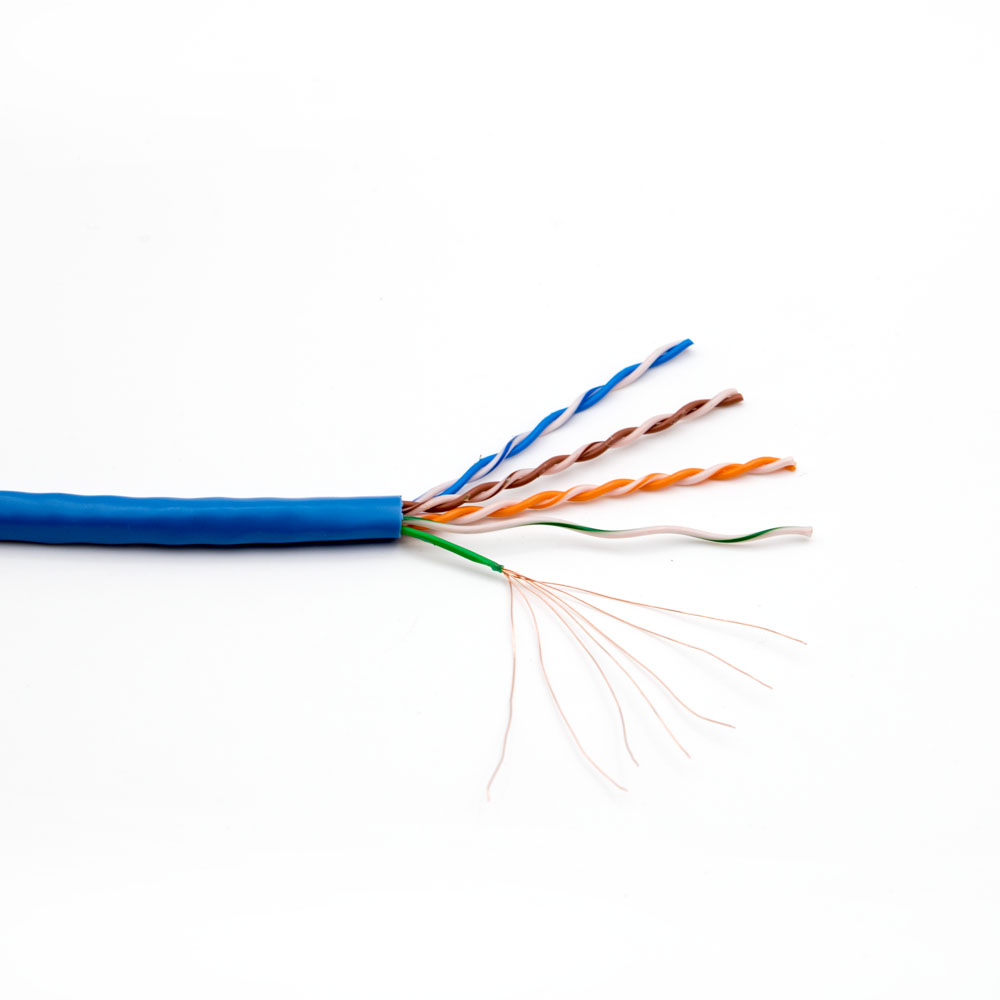

2. Unshielded twisted Cable,4*2*AWG24 Cable, OD=5.2MM, OFC Copper conductor,
(CCA available as well).
3. Cat5e UTP Patch cord, with two model RJ45 Plug 3u' Gold plated,

4. 50u'' gold thickness patented blade

Applications:

Blue 3ft 5ft 7ft Unshielded Cat5e Patch Cables Networking Cable With RJ45 Jack
